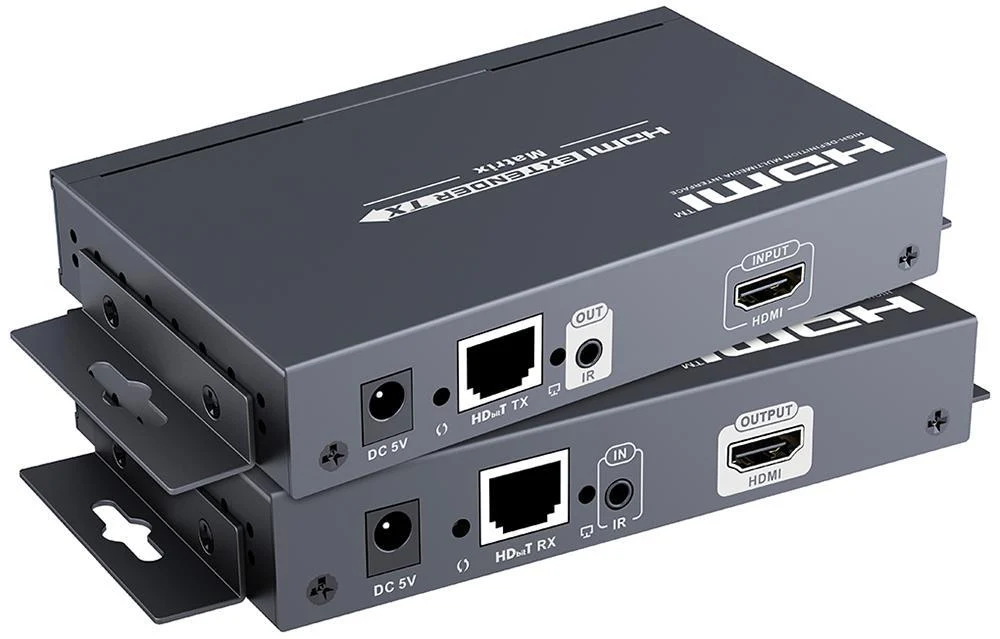

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control

Easily extend a high definition HDMI source over a single Cat5e/6 network cable. Utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

Matrix design supports 1-to-1 and 1-to-many configuration
Supports resolutions up to 1080p Full HD @60Hz
Maximum cable run 120m (Cat6) or 100m (Cat5e)
HDbitT technology for stable performance
Smart control app for PC and mobile devices
IR Passback support (20-60kHz frequency) to control source devices
HDMI 1.3, HDCP 1.4 compliant
Channel ID display and power/activity status LED indicators
Easy access reset button (TX & RX)

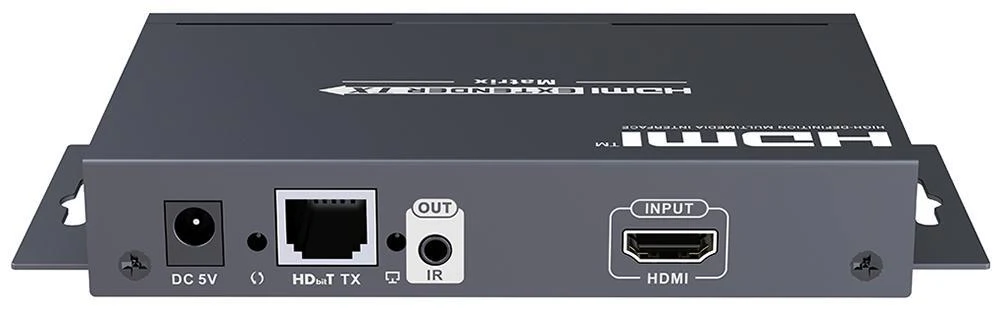

Transmitter connections: HDMI in, RJ45 out, IR out

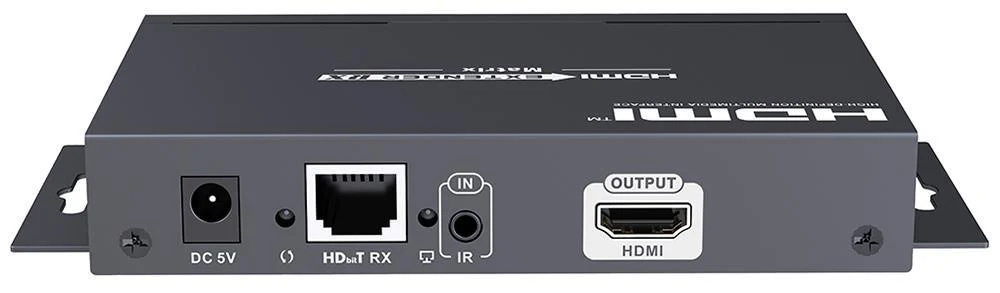

Receiver connections: RJ45 in, HDMI out, IR in
Dimensions (HxWxD): 24x133x84mm (each)

In the Box :-

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide

Product Information

Shipping & Returns

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control

Easily extend a high definition HDMI source over a single Cat5e/6 network cable. Utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

Matrix design supports 1-to-1 and 1-to-many configuration
Supports resolutions up to 1080p Full HD @60Hz
Maximum cable run 120m (Cat6) or 100m (Cat5e)
HDbitT technology for stable performance
Smart control app for PC and mobile devices
IR Passback support (20-60kHz frequency) to control source devices
HDMI 1.3, HDCP 1.4 compliant
Channel ID display and power/activity status LED indicators
Easy access reset button (TX & RX)
Transmitter connections: HDMI in, RJ45 out, IR out

Receiver connections: RJ45 in, HDMI out, IR in
Dimensions (HxWxD): 24x133x84mm (each)

In the Box :-

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide

$88.70

Original: $253.44

-65%

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control—

$253.44

$88.70

Original: $253.44

-65%

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control—

$253.44

$88.70

Product Information

Shipping & Returns

Description

Easily extend a high definition HDMI source over a single Cat5e/6 network cable. Utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

Matrix design supports 1-to-1 and 1-to-many configuration
Supports resolutions up to 1080p Full HD @60Hz
Maximum cable run 120m (Cat6) or 100m (Cat5e)
HDbitT technology for stable performance
Smart control app for PC and mobile devices
IR Passback support (20-60kHz frequency) to control source devices
HDMI 1.3, HDCP 1.4 compliant
Channel ID display and power/activity status LED indicators
Easy access reset button (TX & RX)
Transmitter connections: HDMI in, RJ45 out, IR out

Receiver connections: RJ45 in, HDMI out, IR in
Dimensions (HxWxD): 24x133x84mm (each)

In the Box :-

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide
